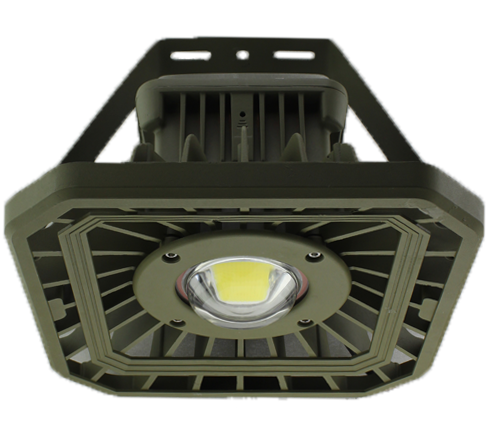

LED Explosion Proof High Bay EPL09

Model: EPL09


MODELEPL09
POWER20W/30W/60W/80W/100W/120W/150W/180W/200W

Ex Mark

II 2 G Ex d IIC T6 Gb,II 2 D Ex tb IIIC T80°C Db IP6620W-50W

II 2 G Ex d IIC T5 Gb,II 2 D Ex tb IIIC T95°C Db IP6660W-150W

II 2 G Ex d IIC T4 Gb,II 2 D Ex tb IIIC T130°C Db IP66180W/200W

Application

Applied to oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf, tunnel, pumping station, substation, the military base,etc. Zone I and Zone ⅡHazardous Locations, Zone 20, Zone 21, Zone 22 and Ⅱ A, Ⅱ B, Ⅱ C explosive gas atmosphere.

Features

1.Patented design for heat dissipation to ensure life of light source up to 50000 hours.

2.Low power consumption while high light efficiency, power consumption just 20% as much as high pressure sodium lamp, mercury lamp at the same luminous condition, it saves energy more than 75% than that traditional light.

3.Die casting aluminum housing, with anti-static and anti-corrosion coating,high explosion-proof degree of flameproof type; dust-proof, waterproof; lens made of bulletproof PC which is thermal resistance,corrosion resistance, high light transmission.

4.Advanced quadratic light distribution design result in high uniformity of illumination and good lighting quality, clear lighting effect without a double image.

5.Beautiful appearance, several types of installation methods available.

Technical Parameters

Item Name

LED explosion proof light

Power Consumption

20W/30W/60W/80W/100W/120W/150W/180W/200W

Input Voltage

100277V AC 50/60Hz;

90305V AC 50/60Hz;

12V48DC/ AC

Frequency

50/60Hz (applied for 47-63 Hz)

Beam Angle

90°/120°

Explosion-proof Grade

II 2 G Ex d IIC T6 Gb,II 2 D Ex tb IIIC T80°C Db IP6620W-50W

II 2 G Ex d IIC T5 Gb,II 2 D Ex tb IIIC T95°C Db IP6660W-150W

II 2 G Ex d IIC T4 Gb,II 2 D Ex tb IIIC T130°C Db IP66180W/200W

Corrosion-proof Grade

WF2

IP Grade

IP66

Power Factor

>0.95

Total Harmonic Current

<15%<>

Lamp Efficiency(%)

≥90%

Color Temperature(K)

Warm white:2700-4000K; Pure white: 5000-6500K

Junction Temperature(TJ)

<65<>°C

Color Rendering Index (CRI)

Ra70

Light Effect

120lm/W

Ambient Environment

Ambient temperature: - 40℃+55℃; Humidity: 10-90%RH (25°C)

Storage Temperature

-40°C-60°C

Lifespan

50000Hs

Material

Aluminum Alloy

Installation Height

4~10m (flood light) / 10~30m (project light)

Dimension(mm)

350*350*250mm

Net Weight

8.5Kg
