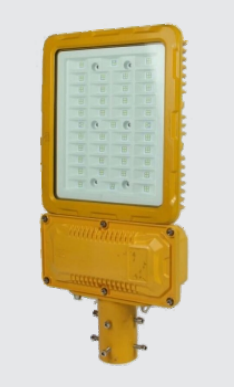

Led Explosion Proof Street Light
Model: EPL58 Series
Model : EPL58 series
Ex mark : II 2G Ex d II C T5 Gb, II 2D Ex tb IIIC T95°C Db IP66
Application
Widely used in oil mining, refining, chemical industry, medicine, storage, offshore oil platform and other flammable and explosive dangerous places of lighting
1) Long life time: Bridgelux LED chip and patented design for heat dissipation.
2) Application: IP66 and can be used in oil fields, oil refineries, offshore oil platform, power plant, gas station, oil tanks, wharf, tunnel, pumping station, substation, the military base.
3) Energy saving, beautiful design and different installation methods available.
4) Sealed aluminum alloy body with anti-static and anti-corrosion power painting. The housing is of good quality ensuring water proof, flame proof, explosion proof and dust proof.
5) Easy to install and several installation methods available.
6) Advanced driver to ensure stable performance and high safety.
7) The ATEX 70W -- 200W ex proof led lights is of Good lighting quality, clear highlight effect without a double image and energy saving.
8) Warm white and pure white available ATEX 70W--200W ex proof LED lights.
9) Many choices of rated power 70W,100W,150W,180W,200W
10) Your inquiry related to the EX lights or prices will be replied in 24 hours.
11) Well-trained and experienced staffs to answer all your enquires in fluent English
Specification
Model : EPL58 Series
Rated Power : 70W/100W/150W/180W/200W
Ex mark : II 2G Ex d II C T5 Gb, II 2D Ex tb IIIC T95°C Db IP66
Input Voltage : AC 90V -- 305V, DC 24V / 48V Option
Input Frequency : 50/60Hz
Actual Luminous Efficiency : 120--130lm/W
Color Temperature : Warm white: 2700 -- 4500K/Pure white 5000--6500k Option
CRI > 80
IP Grade : IP66
Power Factor > 0.9
Ambient Temperature : -50°C -- + 60°C
Lifetime > 50,000 hours
Housing material : Aluminum alloy
Lens material : Tempered glass
Installation Height : 6 -- 15m
